- Advanced turbine design: Provides ICU-level care with precise flow, volume, and pressure control, even for the sickest patients.
- Dual PSOL valves: Ensures accurate delivery of ventilation parameters for enhanced patient support.
- Versatility: Compatible with both high and low-pressure gas sources for flexible use in various medical settings.
- Wide range of ventilation modes:
– Assisted Control Mandatory Ventilation (CMV)
– Synchronized Intermittent Mandatory Ventilation (SIMV)
– Spontaneous Ventilation (CPAP + PS, CPAP + VS, SPAP) - Modes of ventilation:
– Volume-Controlled (V-CMV, V-SIMV)
– Pressure-Controlled (P-CMV, P-SIMV, PS)
– Volume Targeted Pressure-Controlled (PRVC-CMV, PRVC-SIMV, VS)
– Dual-Level PEEP & Equivalent to APRV/BiLevel (SPAP) - Additional features:
– Auto Control & Apnea Backup Ventilation
– Active Exhalation Valve for automatic leak compensation (up to 60 lpm)
– Work of Breathing Imposed Maneuvers: PO.1 and PiMax
– Breath Triggering: Pressure or flow triggering, with customizable sensitivity
– IBW (Ideal Body Weight) Calculator for precise settings - Customization and settings:
– Respiratory Rate: 1–120 bpm
– Tidal Volume: 20–3000 ml
– PEEP/CPAP: 0–50 cmH2O
– Pcontrol & Psupport: Adjustable from 0–100 cmH2O
– Peak Flow (Mandatory): 1–120 lpm | Peak Flow (Spontaneous): Up to 180 lpm
– Inspiratory Times (I-Times): 0.2–10.0 sec
– Oxygen Concentration: 21–100%
– Exhalation Sensitivity: 1–80% (of spontaneous peak flow)
– Base Flow: 2.5–25 lpm (with leak compensation off) - Neonatal & Pediatric options:
– Neonatal Software: Customizable settings for infants (EVM400156)
– NCPAP+ & Suction Support (EVM400158, EVM400157)
– Hi FlowO2 Option (EVM400184) - User-friendly interface:
– Graphical User Interface (GUI): Customizable tabs for easy navigation (Main, Settings, Monitoring, Alarms, Configuration)
– Graphics Display: 2-loops and 3-waveforms for clear visualization
– Smart Nebulizer™ & Smart Sigh™ for enhanced patient care
– EtCO2 Graphics for real-time CO2 monitoring and PaCO2 time stamp entry
– Manual & User-Initiated Functions: Alarm silence, 100% oxygen, inspiratory/expiratory breath holds
– Portable and versatile: Ideal for use in hospitals, emergency departments, ICUs, and transport settings, providing reliable, ICU-level ventilation wherever needed.
+251-975151599 / +251941172880

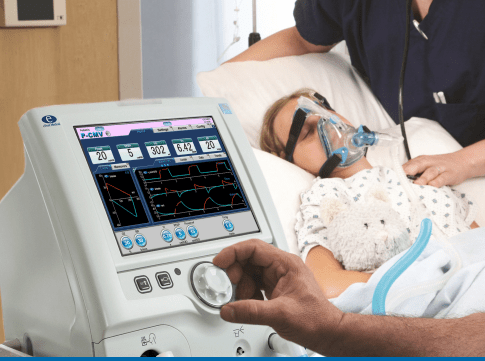

Adult/Neonatal Ventilator
– The eVolution® 3e Ventilator redefines critical care with advanced turbine design.
– Dual PSOL valves ensure precise control over flow, volume, and pressure delivery.
– Provides reliable ventilation for even the sickest patients.
– Offers a full range of ventilation modes, including pressure and volume-controlled options.
– Ensures versatility and reliability across different patient needs.
– Portable, ICU-grade ventilator designed for use in various care settings.
– Compatible with both high and low-pressure gas sources for flexible use.
